Brakes SKU MRB-BRK-1102

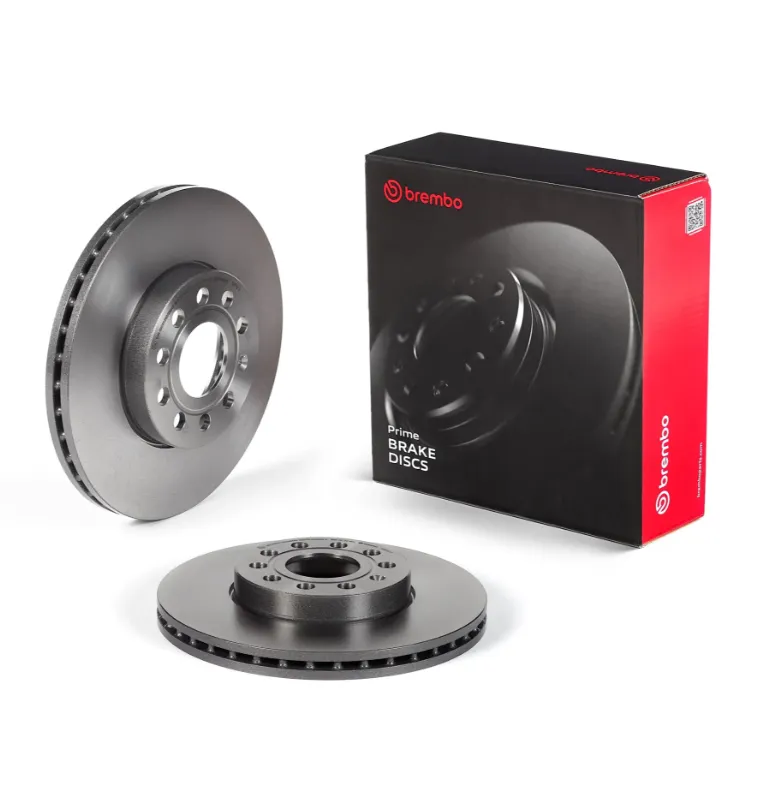

Brembo Prime 09.9145.11 front vented brake discs 288 mm (pair)
Genuine Brembo Prime UV-coated vented front discs, 288 x 25 mm, sold as a pair with fixing screws. Matches our Brembo P 85 126 pads.
18 in stock
- Delivery in 2–3 days. Free delivery from £60.00Free delivery from 70,00 €
- New part, covered by your statutory rights
- 14 days to change your mind (returns)
Details
The Brembo Prime 09.9145.11 is a 288 x 25 mm internally vented front brake disc for VW group cars with the 1ZE/1ZP brake system, including the VW Golf VII, Audi A3 8V, SEAT Leon III and Skoda Octavia III. It is OE-equivalent (replaces OE 1K0615301K / 5Q0615301H), ECE-R90 approved, and finished with Brembo’s water-based UV paint that protects the hub and outer edges against corrosion. Minimum thickness 22 mm, centring 65 mm, 5 holes.
Sold by MECA RB as a genuine branded Brembo part, new in the original box: two discs with fixing screws. Fitting advice: always replace discs in pairs on the same axle together with new pads, clean the hub face of rust before fitting, tighten the wheel bolts to the vehicle’s torque and bed in the brakes gently over the first 200 km. Matching pads: Brembo Prime P 85 126 (sold by MECA RB). Check the PR code (1ZE/1ZP) on your vehicle’s service sticker before ordering.
Specifications
| SKU | MRB-BRK-1102 |
|---|---|
| Brand | Brembo |
| Manufacturer part no. | 09.9145.11 |
| EAN | 8020584024287 |
| Fits (examples) | VW Golf VII 1.4 TSI, 2.0 TDI, GTI (2012-2020) with 288 mm front discs, PR 1ZE/1ZP; also Audi A3 8V, SEAT Leon III, Skoda Octavia III with the same brake. Matching pair: Brembo P 85 126 pads + Brembo 09.9145.11 discs (288 x 25 mm vented, PR 1ZE/1ZP) |
| Position | Front axle |
| Type | Internally vented, UV-coated (Prime) |
| Diameter | 288 mm |
| Thickness | 25 mm (minimum 22 mm) |
| Height | 50 mm |
| Dimensions | Centring 65 mm, 5 holes, PCD 112 mm |
| Contents | 2 discs with fixing screws |
| Approval | ECE R90 |
| Weight | 7.3 kg per disc |
| Weight | 14.6 kg |
